Gears, shafts & axles
Custom gear components and machined shafts for machinery assemblies.
Explore custom gears ↗CUSTOM COMPONENTS TO YOUR DRAWING.
Custom gears,
shafts & machined
components.
ITM Technology coordinates drawing review, manufacturing at partner facilities, inspection and delivery according to the agreed technical requirements.
0107
Steel 40ХНDimensions mm · Ra µm
Mass 49.3 kgDrawing mass · 05.03.10.00.001

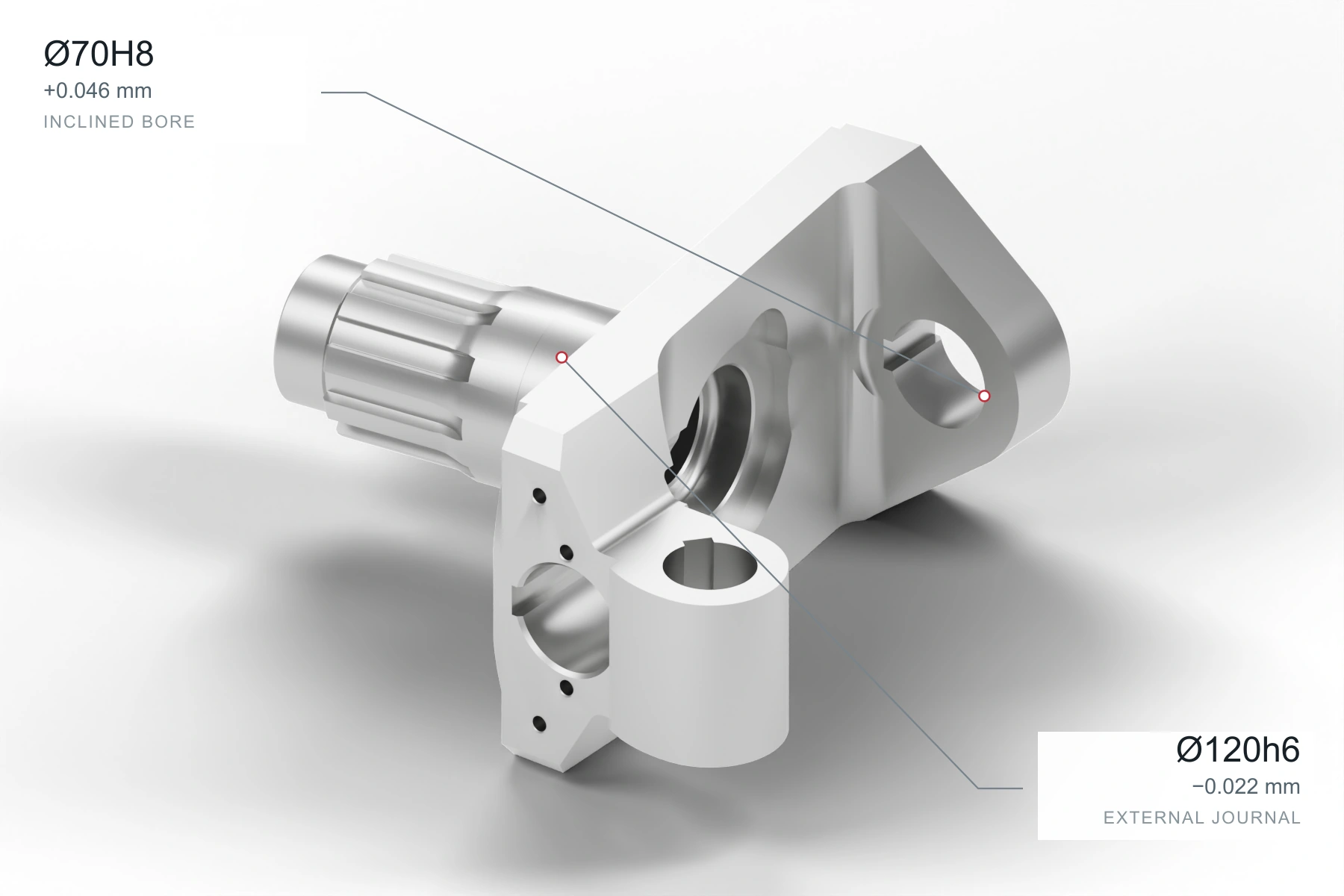

Ø70H8
+0.046 mm
INCLINED BORE
Ø120h6
−0.022 mm
EXTERNAL JOURNAL
0.01 mm
Cylindricity
JOURNAL CYLINDRICITY
Drawing requirements · 05.03.10.00.001
Manufactured to your drawings and specificationsManufacturing through partner facilitiesRequirements agreed before production
THE COMPONENT COLLECTION
Component examples.
Detailed views.
Studio images of individual parts
and component groups.

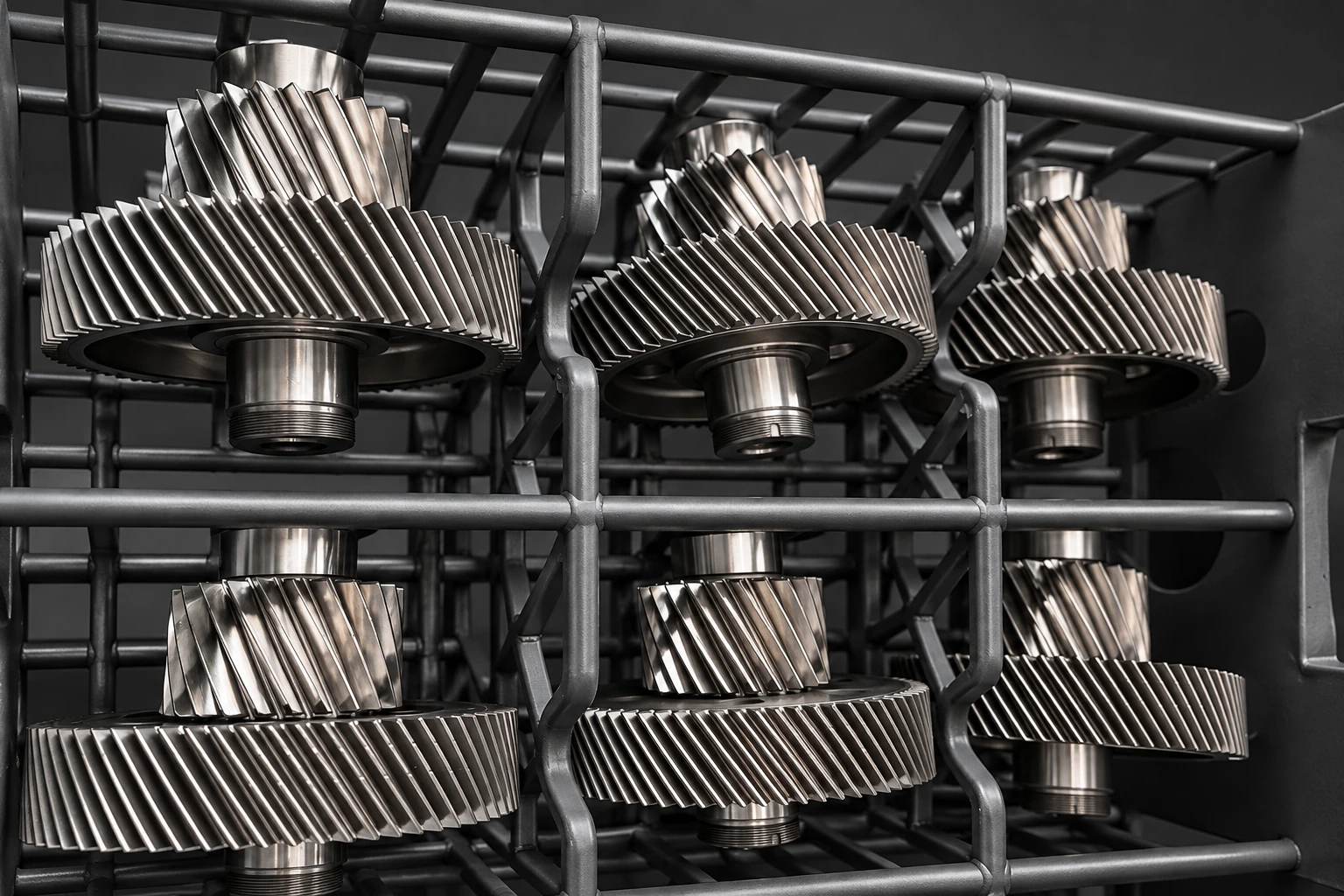

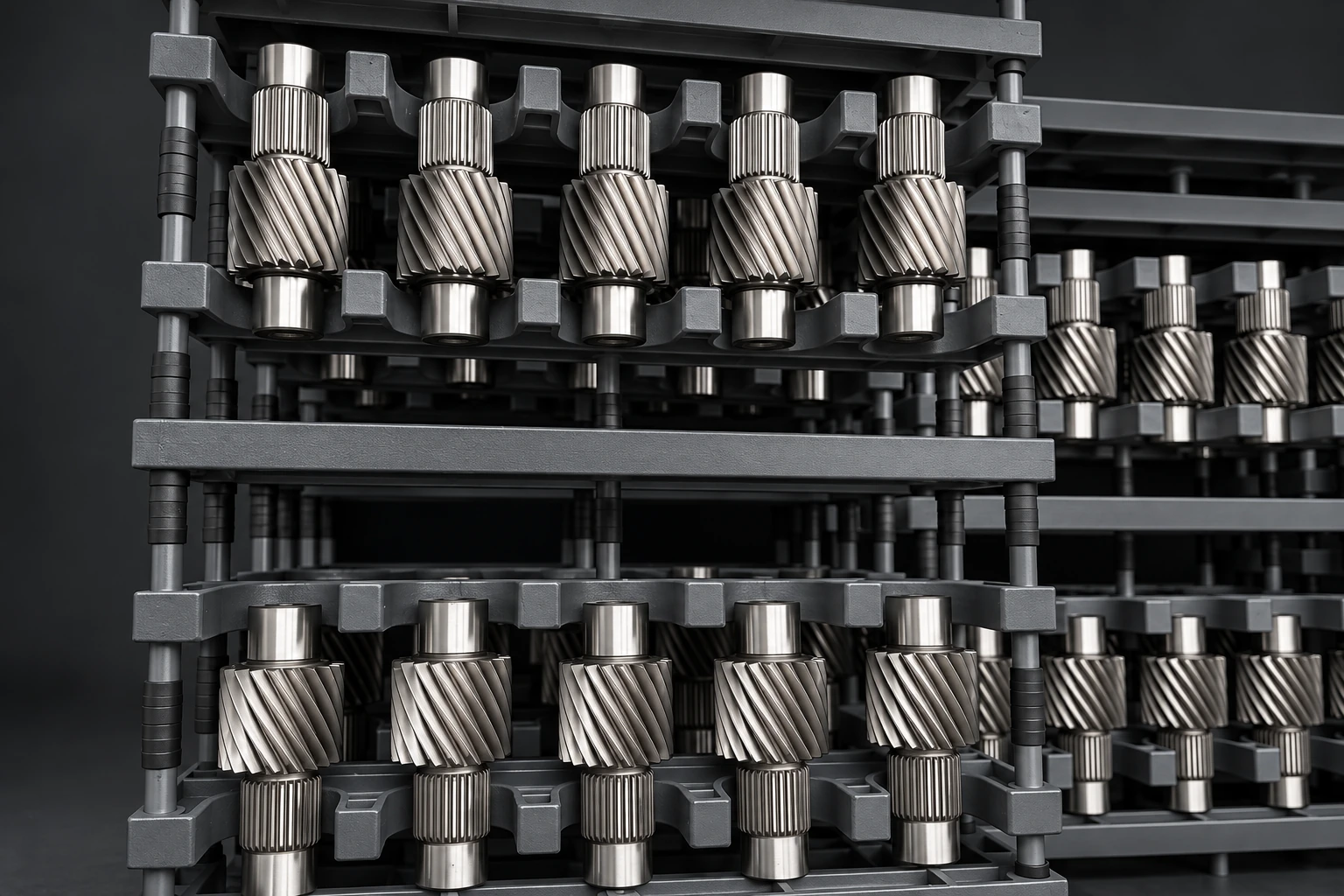

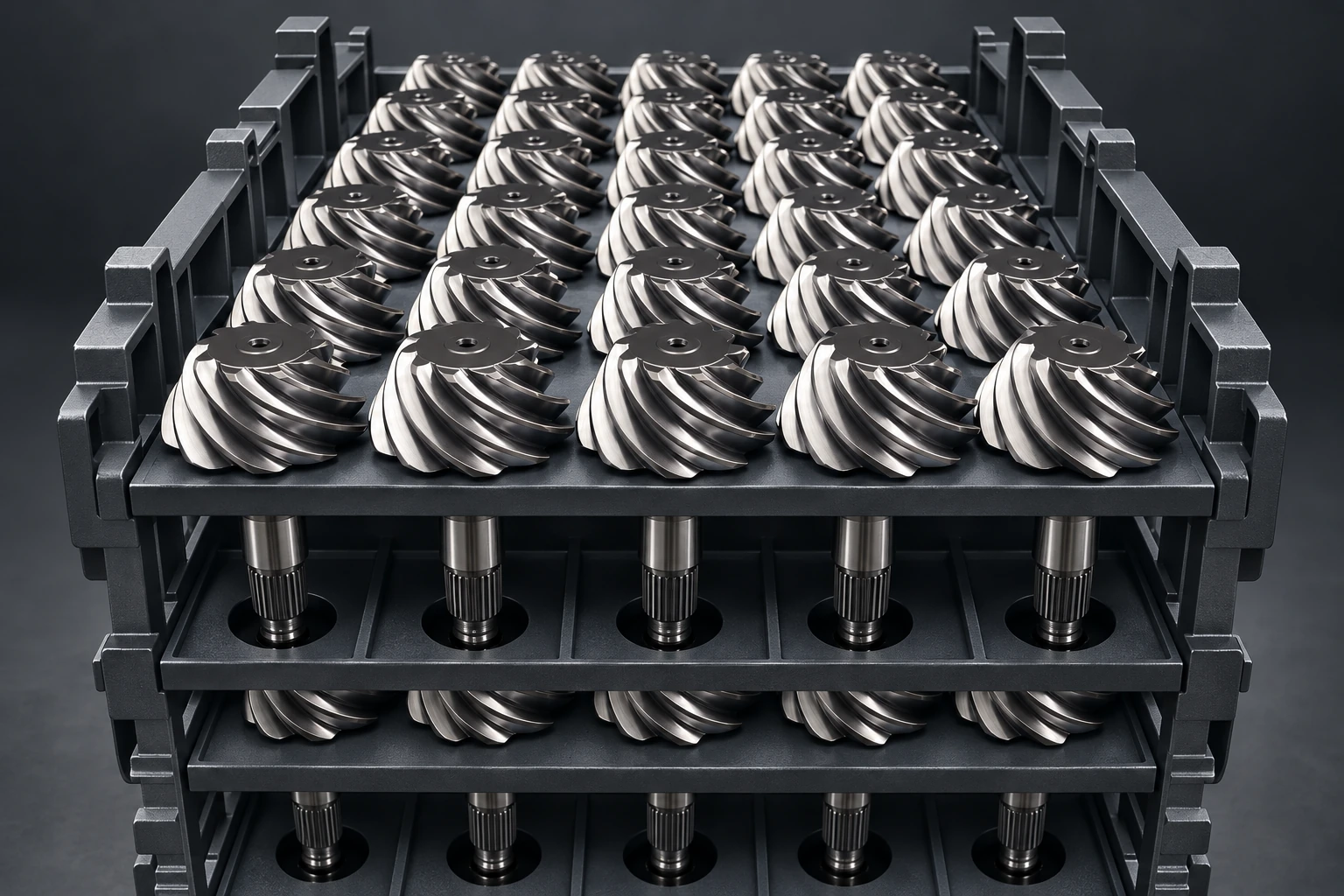

SHAFT ASSEMBLY

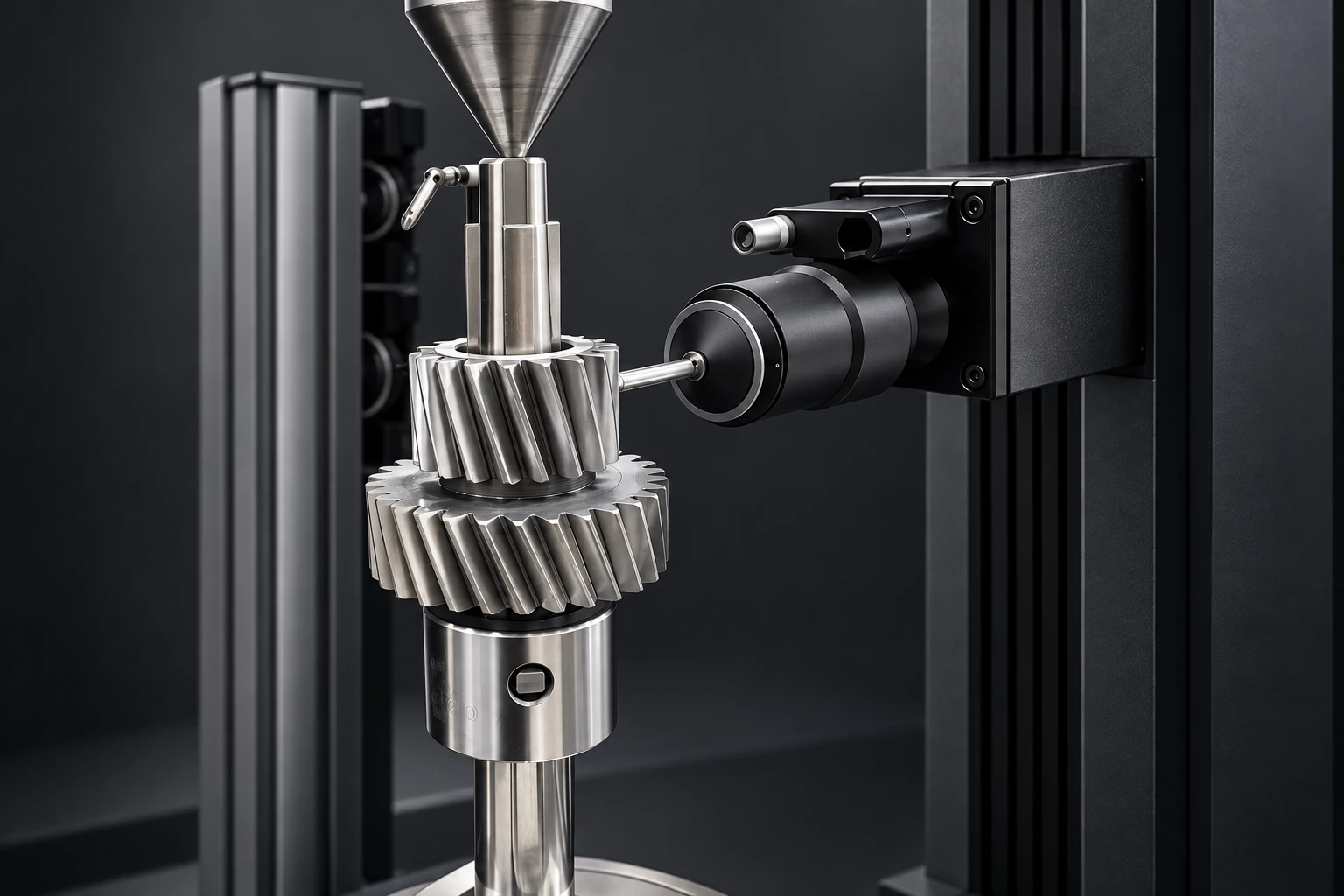

Shaft & gear assembly
PHOTO-BASED STUDIO PORTRAITSDRAG TO BROWSE · CLICK TO ENLARGE
01 / COMPONENT FAMILIES
Gears, shafts and housings.
Manufactured to drawing.
Manufacturing processes are selected according to component geometry, material specifications and acceptance criteria.

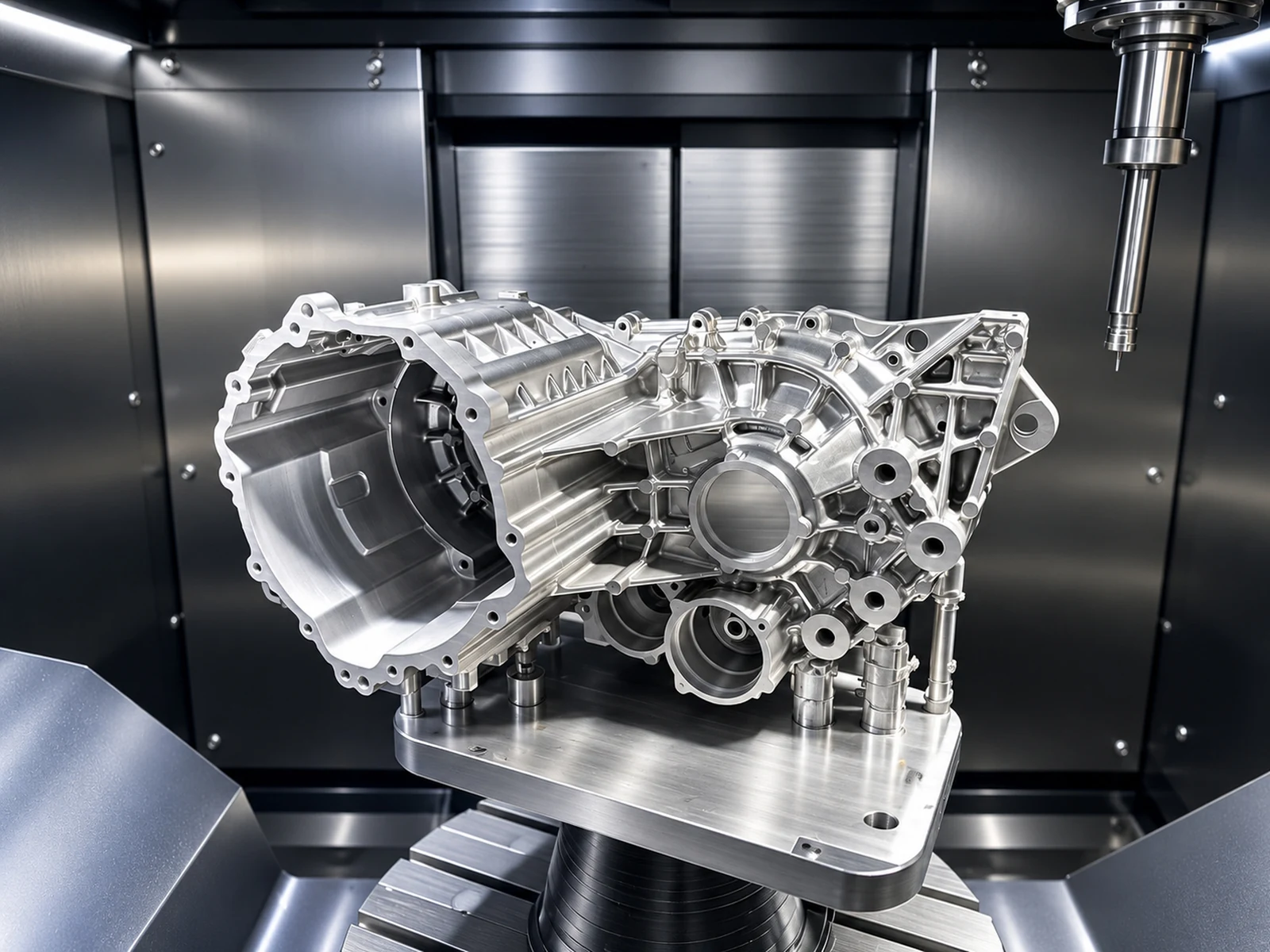

Housings & machined castings
Cast or forged blanks with machining to agreed drawings and specifications.
Explore machined components ↗
Precision assembly components

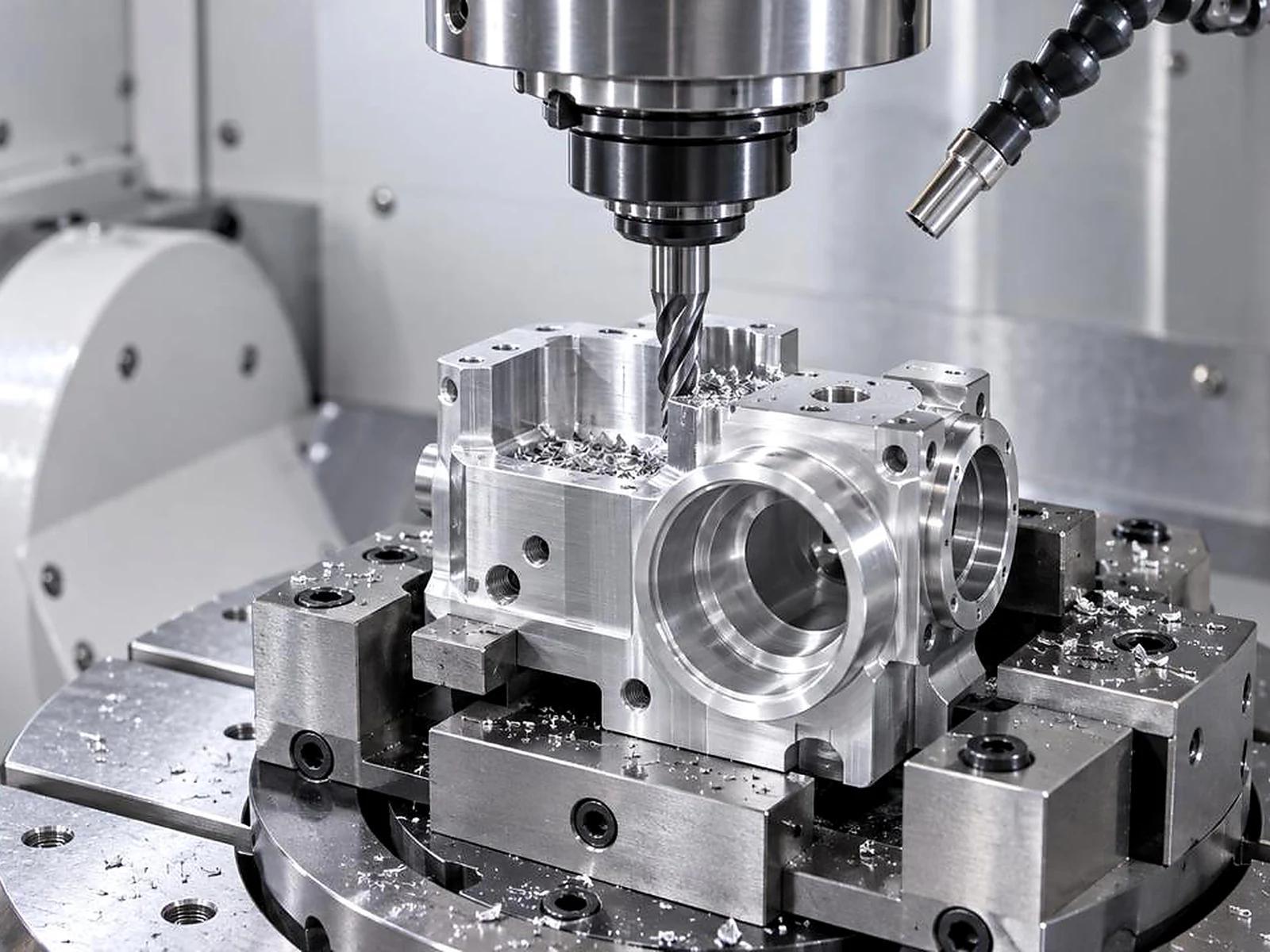

Housings, sleeves, rings and small gear components for precision assemblies.
Explore precision components ↗Component examples from the ITM collection. Technical requirements and manufacturing processes are agreed for each project.
02 / DRAWING REVIEW, PRODUCTION AND DELIVERY
Manufacturing coordination.
From drawing review
to customer delivery.
ITM Technology coordinates the complete manufacturing process: review of customer drawings, process planning, production at partner facilities, inspection and delivery to the customer.
Our experienced team monitors each production stage, reviews in-process inspection results between manufacturing operations and checks final inspection results against the approved drawings and specifications.
We maintain direct contact with the customer, report production status and review inspection information throughout the project. Technical decisions and proposed changes are agreed with the customer before implementation.
One project contact. Production status updates. Documented inspection results.
- 01
Define the requirements
Confirm the drawing revision, material specification, dimensional and geometric tolerances, surface finish requirements and acceptance criteria.
- 02
Plan the manufacturing process
Define the manufacturing operations and select a partner facility according to the component and order requirements.
- 03
Define the inspection plan
Specify the inspection stages, measurement methods and required reports. Review in-process inspection results during manufacturing.
- 04
Coordinate delivery
Confirm packaging, documentation and shipment terms for the agreed delivery destination.
03 / DIMENSIONAL INSPECTION AND DOCUMENTATION
Dimensional requirements.
In-process inspection.
Inspection reports.

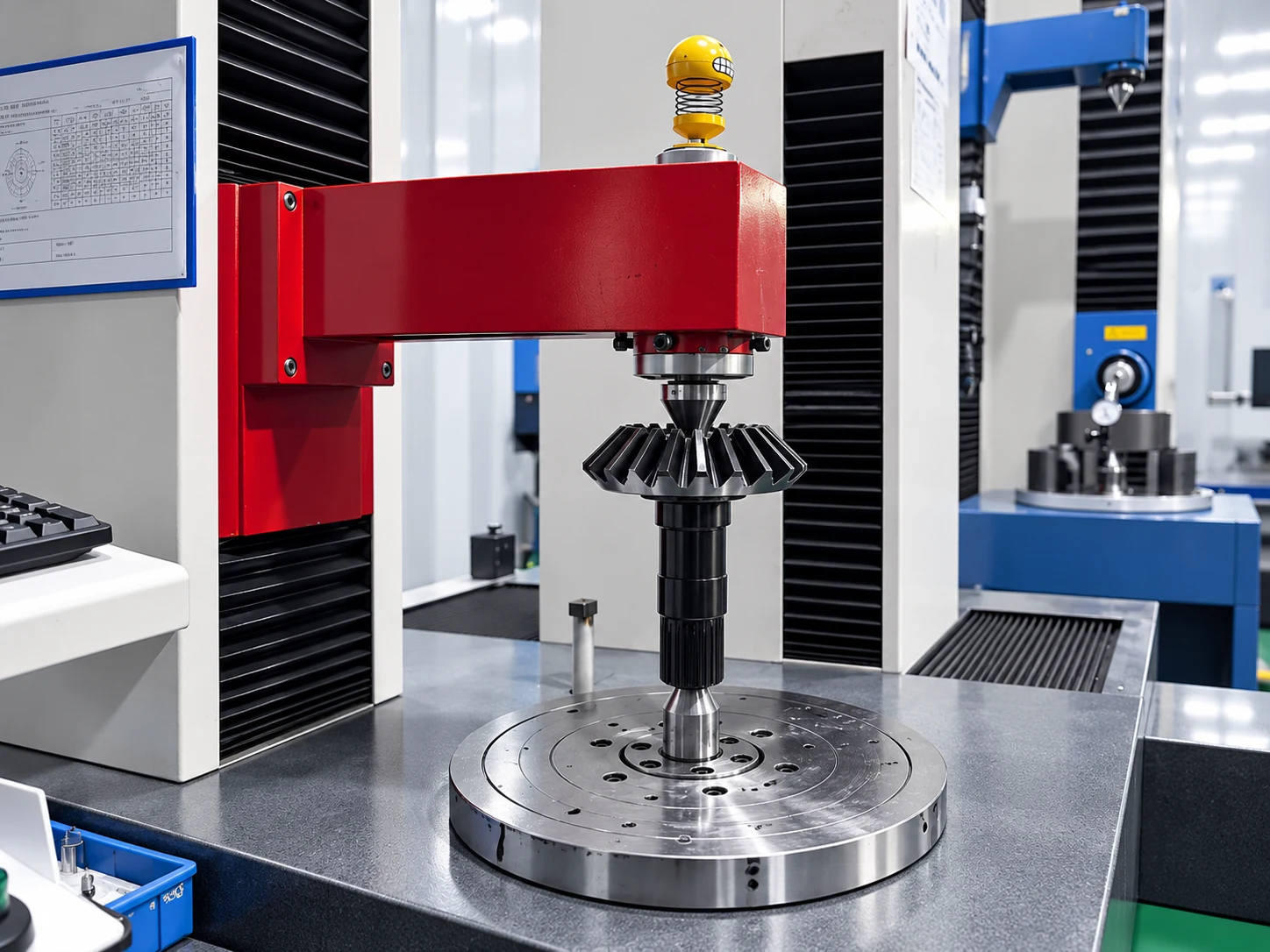

The customer drawing specifies dimensions, tolerances, datum references and surface finish requirements. The inspection plan defines the parameters to be measured, measurement methods, inspection stages and required reports.
- Before production
- Confirm the drawing revision, material specification, dimensions, tolerances, surface finish requirements and acceptance criteria with the customer.
- During manufacturing
- Coordinate in-process inspections at the agreed manufacturing stages and review results for the specified dimensions and geometric characteristics.
- Final inspection
- Review final inspection results against the acceptance criteria and provide the agreed inspection reports with the delivery documentation.
Available measurement methods and required inspection reports are confirmed for each order.
04 / FOR DISTRIBUTORS & INDUSTRIAL PARTNERS
Technical coordination
for industrial partners.
Describe the component types, procurement requirements or customer project, including the technical requirements and the market you serve.
Partner arrangements, territories and commercial responsibilities are negotiated individually.
Download the partner enquiry checklist ↗05 / REQUEST FOR QUOTATION
Provide the drawing.
Specify the requirements.
Provide the technical and delivery requirements below so the engineering team can review the component and prepare a quotation.
Include in your enquiry
- Part drawing or CAD file and revision
- Material and required finish
- Quantity and expected repeat orders
- Specified tolerances and required inspection records
- Requested delivery date and destination
- Confidentiality requirements
