A splined shaft connects several functional surfaces in one part. The spline interface, bearing journals, shoulders and end features need to work together in the assembly. ITM coordinates shaft projects through manufacturing partners, using your drawing to define the scope before production.

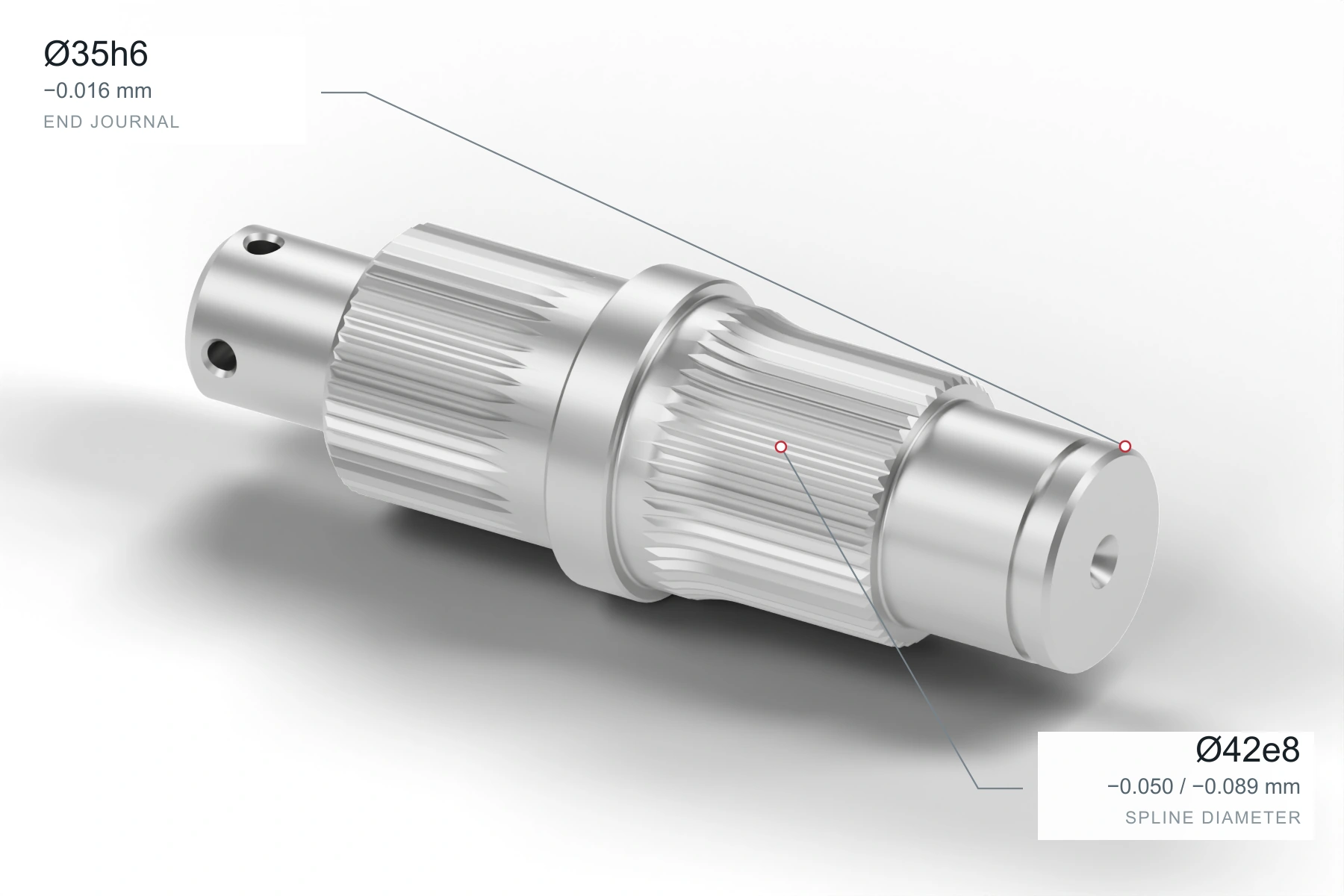

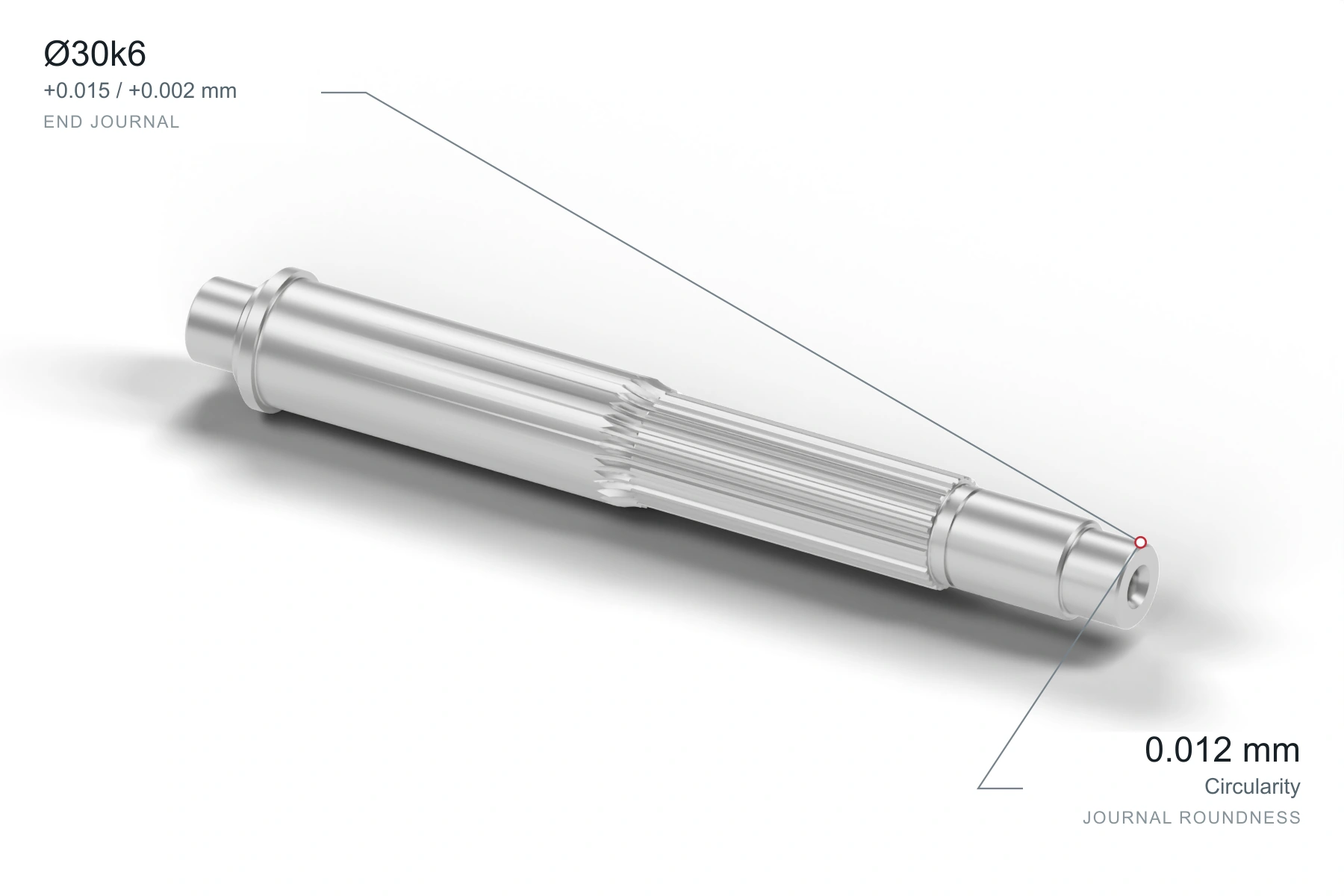

The collection includes a long splined shaft and an output shaft with distinct journals and spline features. These examples help frame an enquiry for your own component. They do not replace a complete specification for the mating interface, fit, material or acceptance checks.
FROM REQUIREMENTS TO ACCEPTANCE
Identify the spline standard or provide a fully dimensioned profile. Include tooth count, relevant diameters, fit designation and engagement length, along with the mating component where available. A CAD shape alone may leave these requirements undefined, so the drawing should identify how the spline is to be manufactured and accepted.
A shaft's locating surfaces deserve the same attention as its spline. Mark the bearing seats, shoulder positions and datum relationships that control the assembly. Distinguish size tolerances from geometric requirements such as runout or cylindricity. ITM uses the technical brief to coordinate the production route and the checks needed for these features.
Define material, any required heat treatment and surface finish in the enquiry. Agree which critical features will be checked and which records will accompany the order. The inspection method and documentation are confirmed for the specific project, together with quantity, packaging and delivery terms.
START WITH A USEFUL BRIEF
For confidential projects, start with a non-confidential summary and agree an NDA and file-sharing route.
[email protected] ↗
BEFORE YOUR ENQUIRY
A model is useful for geometry. Add a drawing or specification that defines the spline interface, fits, material, finish and acceptance criteria so these requirements can be reviewed.
The shaft examples include journals, shoulders and spline features. Include all features in your enquiry; the suitable production route and project requirements are confirmed after review.
Start with a non-confidential summary. Discuss the NDA and an approved file-sharing route before sending restricted drawings or CAD files.
